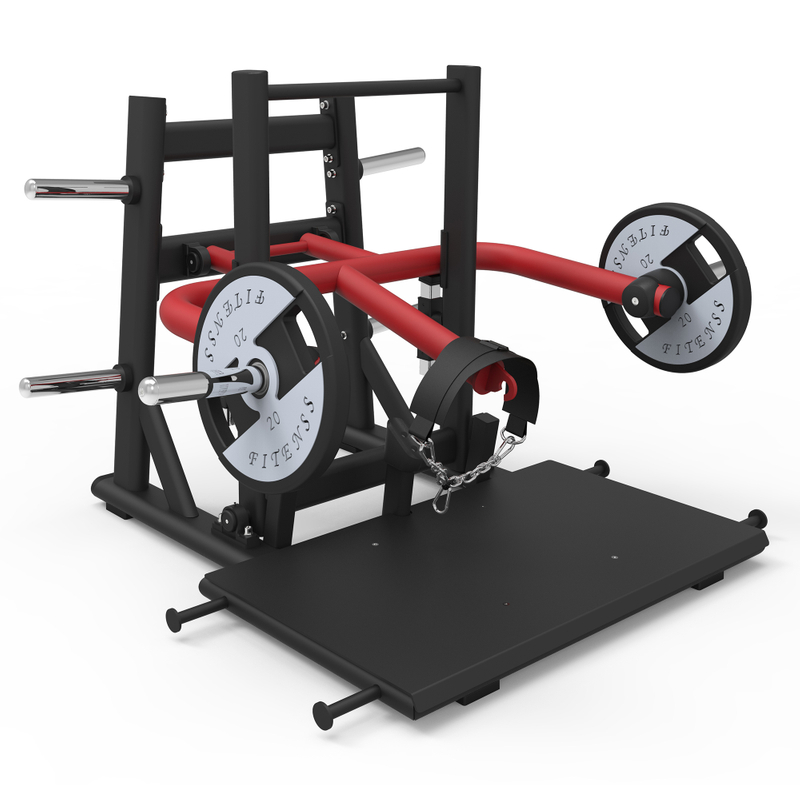

The PL74 Belt Squat is a professional strength training equipment designed specifically for lower-body workouts, focusing on exercises such as squats without putting pressure on the lower back. It is suitable for both commercial gyms and advanced home fitness setups, enabling users to build strength in the quads, glutes, and hamstrings safely and effectively. With its robust construction and user-centric design, the machine provides a stable and comfortable workout experience, making it a valuable addition to any fitness facility.
| Quantity: | |
|---|---|
Made of Q235 carbon steel, welded with high-strength density steel pipes. Pipe specification: 50x100x3.0mm rectangular pipe, fully meeting the safety strength requirements for the use of the equipment.
High-carbon chromium steel bearings are adopted. The rotating parts all use high-precision high-carbon chromium steel bearings, with a service life of up to 10 years
The surface spraying material of PFA DuPont MP102 powder from the United States is an environmentally friendly powder that is harmless to the human body and remains fresh and does not fall off for a long time. The coloring process of the equipment is a fully automatic baking varnish process, which is heat-resistant and not easy to peel off.
Made of recycled sponge, they feature automatic shaping, impact absorption, breathability, moisture absorption and moisture-proofing, mold prevention, and protect your health. The outer skin is made of high-quality PU.
The pulleys are made of self-lubricating nylon material to reduce the friction between the pulleys and the tension lines and extend the service life of the steel cables. High-quality imported steel wire rope, which has undergone 100,000 load tests and meets the requirements of GB17498, features a high-strength configuration of "six strands and nine wires" inside the steel wire rope. The diameter of the steel wire is 6mm.
The interior of the handle is consistent with the frame. Additionally, pu flexible tubes and metal end caps are added to enhance its durability.
The PL74 Belt Squat features a heavy-duty frame made of Q235 carbon steel, combined with high-strength density steel pipe welding. The pipe specification is 50x100x3.0mm rectangular pipes, which ensures the machine can withstand heavy loads and resist deformation during high-intensity training sessions. The stable base design further enhances the machine's overall stability, preventing tipping even when users perform heavy squats.
• Bearings: All rotating parts are equipped with high-carbon chromium steel bearings. These bearings offer high precision and excellent durability, with a service life of up to 10 years, ensuring smooth and quiet operation of the machine for an extended period.
• Pipe Spraying: The surface of the machine is coated with PFA DuPont MP102 powder imported from the United States. This coating is environmentally friendly, non-toxic, and highly resistant to wear and fading, keeping the machine looking new for years. The automatic baking varnish process adds an extra layer of protection, making the surface heat-resistant and easy to clean.
• Seat Cushions & Backrests: Made of recycled sponge, the seat cushions and backrests provide excellent comfort and support. They have the properties of automatic shaping, impact absorption, breathability, moisture absorption, moisture proofing, and mold prevention, protecting users' health and ensuring a comfortable workout experience. The outer skin is made of high-quality PU material, which is wear-resistant and resistant to oil and sweat.
• Pulleys & Steel Cables: Pulleys are constructed from self-lubricating nylon material, which reduces friction between the pulleys and steel cables, significantly extending the service life of the cables. The high-quality imported steel wire rope has undergone 100,000 load tests and complies with GB17498 standards. It adopts a "six strands and nine wires" high-strength configuration, with a diameter of 6mm, ensuring it can handle heavy loads without breaking.
• Handle: The handle is made of high-strength TPC material, with an interior structure consistent with the frame for enhanced stability. PU flexible tubes and metal end caps are added to the handle, improving its durability, anti-slip performance, and grip comfort, allowing users to maintain a secure hold during workouts.
Parameter | Details |
Product Name | PL74 Belt Squat |
Main Pipe Material | Q235 carbon steel (50x100x3.0mm rectangular pipe) |
Bearing Type | High-carbon chromium steel bearings |
Bearing Service Life | Up to 10 years |
Surface Coating | PFA DuPont MP102 powder (automatic baking varnish process) |
Seat/Backrest Material | Recycled sponge (inner) + high-quality PU (outer skin) |
Pulley Material | Self-lubricating nylon |
Steel Cable Specification | 6mm diameter, "six strands and nine wires" configuration, meets GB17498 |
Handle Material | High-strength TPC (with PU flexible tubes and metal end caps) |
Quantity per Unit | 1 |
