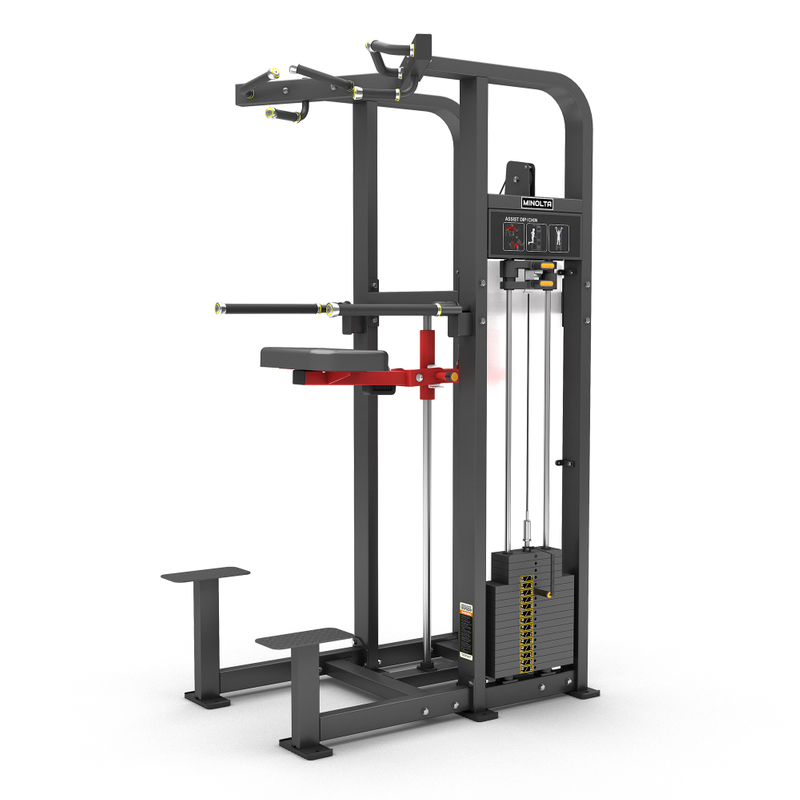

F11 Dip/Chin Assist

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

1. Main pipe material: Made of Q235 carbon steel, welded with high-strength density steel pipe. Pipe specifications: 50x100x3.0mm rectangular pipe, fully meeting the safety strength requirements for equipment use.

2. Bearings: High-carbon chromium steel bearings are adopted. The rotating parts all use high-precision high-carbon chromium steel bearings, with a service life of up to 10 years

3. Pipe spraying: The surface spraying material of PFA DuPont MP102 powder from the United States is an environmentally friendly powder, which is harmless to the human body, remains new for a long time and does not fall off. The coloring process of the equipment is a fully automatic baking varnish process, which is heat-resistant and not easy to peel off.

4. Seat cushions and backrests: Made of recycled sponge, they feature self-shaping, shock absorption, breathability, moisture absorption, moisture-proofing, mold prevention, and protection of health. The outer skin is made of high-quality PU.

5. Pulley and steel wire rope: The pulley is made of nylon self-lubricating material, which reduces the friction between the pulley and the tension line and extends the service life of the steel cable. High-quality imported steel wire rope, undergoing 100,000 load tests, meeting the requirements of GB17498, with a high-strength configuration of "six strands and nine wires" inside the steel wire rope. Steel wire diameter: 6mm;

6. Handle: The handle is made of high-strength TPC material. The interior of the handle is consistent with the frame, and an additional pu hose and metal end cap are added to enhance durability.

7. Exercisable muscle areas: upper limbs
